Installation of a pilot operated Yoshitake steam pressure reducing valve (Japan)

Установка парового редукционного клапана Yoshitake с пилотным управлением


The steam pressure reducing valve of the Japanese company Yoshitake GP-1000 DN100 was installed at the enterprise to reduce steam from a pressure of 6-8 bar to 4 bar. The task was set to replace the valve as quickly as possible instead of another manufacturer that had failed. This task was quickly solved, since the required valve is included in the warehouse program of OPEKS Energosystems. A wide range of Yoshitake GP-1000 and GP-2000 pressure reducing valves with diameters from DN15 to DN100 is constantly maintained in the warehouse. Separately, it is worth noting the high accuracy of maintaining the secondary vapor pressure by Yoshitake valves, due to the high reliability of the design, the built-in pilot valve. Mounting of the valve is easy as the impulse pipes supplying control pressure to the valve mechanism are also built into the body. The required pressure is adjusted with the adjusting screw in the upper part of the valve. An important advantage of Yoshitake pressure reducing valves is the ability to reduce steam in a 20: 1 ratio. This feature allows one-stage steam reduction with high accuracy, using only one valve, instead of two from other manufacturers.

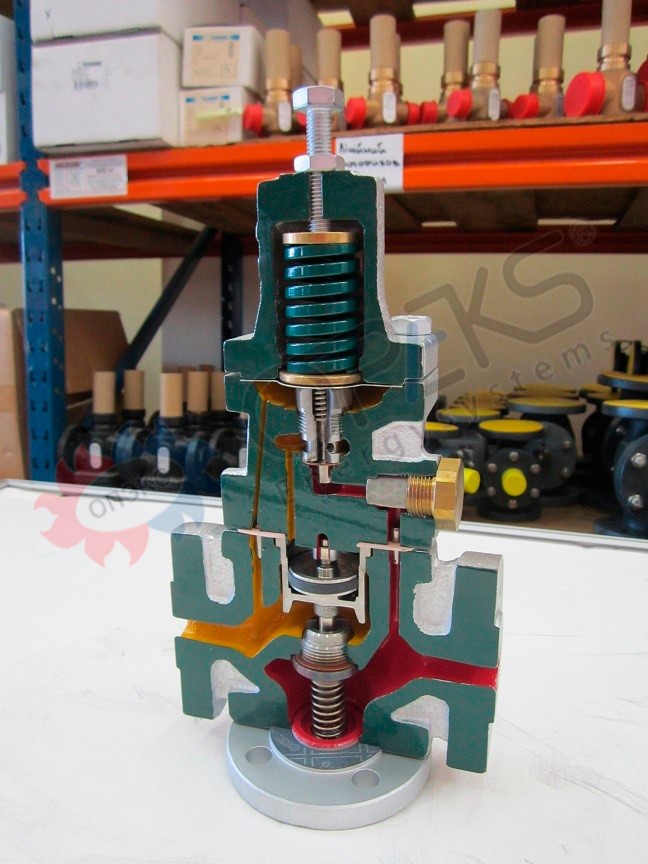

Yoshitake GP-1000


To increase the service life of the pressure reducing valves, it is always recommended to install a steam separator to remove moisture and drain the steam in front of the pressure reducing valve https://opeks.ua/en/steam-and-gas-separators/

You can apply for the supply of a pressure reducing valve or installation of a steam reduction system by using the contacts on the company's website.
