Block pump with dry rotor Wilo-CronoBloc-BL

Block pump with dry rotor WiloCronoBlocBL
in stock
Price: specify

Quantity

Total

specify

  • Manufacturer: Wilo
  • Pump type: Dry rotor pumps
  • Scope of application: heating, air conditioning, closed cooling circuits
  • Working environment temperature: from -20 ° C to + 140 °C
  • Consumption: 0-375m3
  • Pressure: 5-100m
Quick order
Enter your phone number and
our manager will call you back
  • Specification
  • Description
  • Characteristic field
  • Peculiarities
  • Delivery and payment
Parameter nameMeaning
Permissible temperature range of the pumped liquidfrom -20 ° C to + 140 ° C
Electrical connection to the network3 ~ 400 V, 50 Hz (others on request)
Protection classIP55
Nominal diameterDN 32 to DN 150
Max. operating pressure16 bar (optional 25 bar on request)

A pump with a dry rotor in a block design with a flange connection is used for pumping heating water (according to VDI 2035), water-glycol mixture, cooling and cold water without abrasive substances in heating, air conditioning and cooling systems.

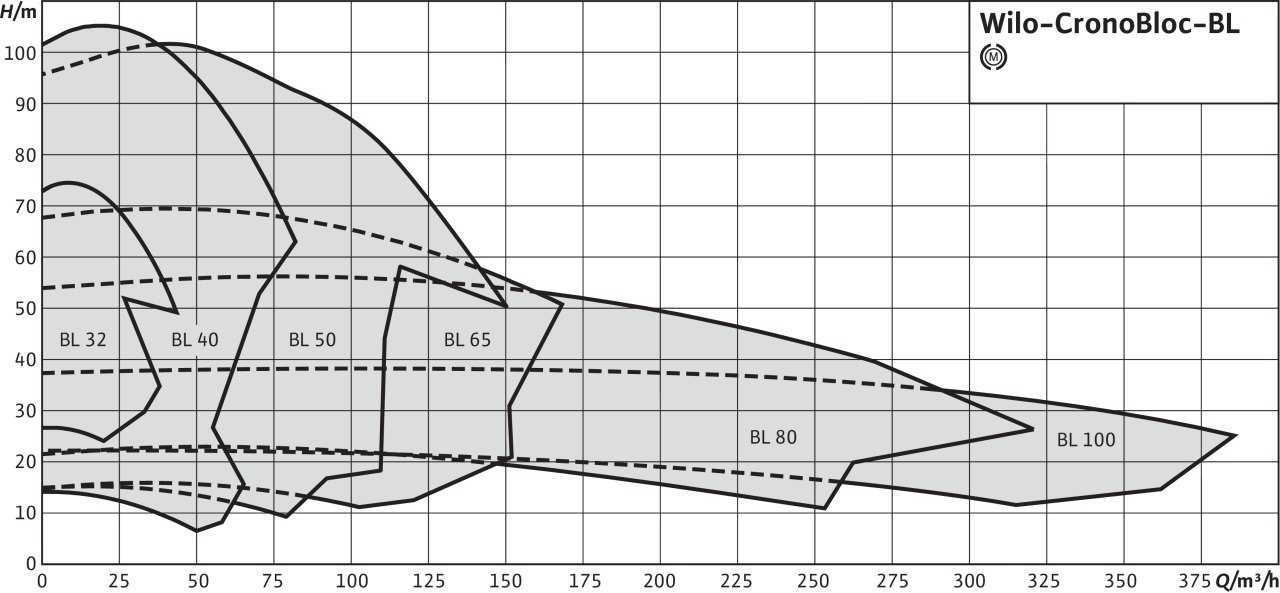

Wilo-CronoBloc-BL (2-pole)

поле рабочих характеристик Wilo-CronoBloc-Bl (2 полюсный)

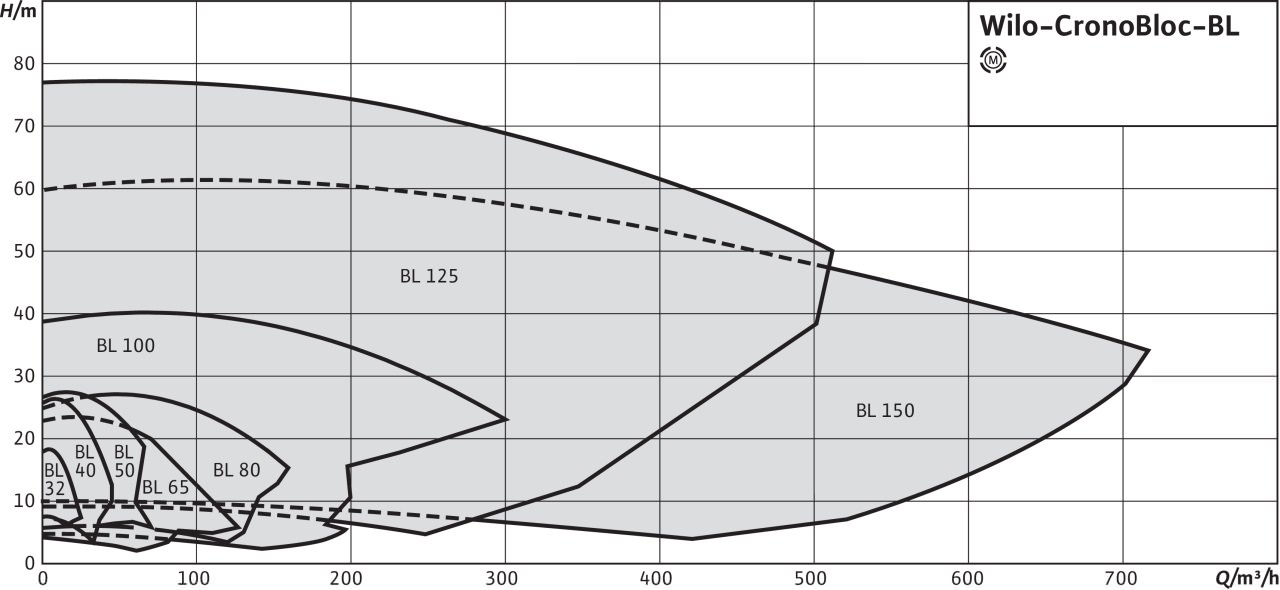

Wilo-CronoBloc-BL

Поле рабочих характеристик Wilo-CronoBloc-Bl

  • Low operating costs due to high efficiency
  • High level of corrosion protection thanks to cataphoretic coating of cast components.
  • Condensate drain holes are provided as standard in the motor housing
  • Always and everywhere available standard motors (according to Wilo specification) and mechanical seals
  • Ease of use due to compliance with performance and basic dimensions EN 733 (DIN for standard pumps)
