Energy-saving circulation pump with dry rotor Wilo-CronoLine-IL-E

Energysaving circulation pump with dry rotor WiloCronoLineILE
in stock
Price: specify

Quantity

Total

specify

  • Scope of application: closed cooling circuits, heating, air conditioning, industrial circulation systems
  • Working environment temperature: from -20 ° C to + 140 °C
  • Consumption: 0-610m3
  • Pressure: 0-63m

Delivery

  • Pickup from a warehouse in Kiev
  • New Mail
  • SAT
  • Deliveri
  • Courier in Kiev

Payment

  • Cashless payment with VAT
  • Online Privat24, Visa / MasterCard
Quick order
Enter your phone number and
our manager will call you back
  • Features of the lineup
  • Characteristic field
  • Features/Benefits
  • Technical details
  • Delivery
  • Payment

Electronically controlled dry rotor pump in inline design with flange connection and automatic power regulation, used for: pumping heating water (according to VDI 2035), cold water and water-glycol mixture without abrasive substances in heating, air conditioning and cooling systems.

Wilo-CronoLine-IL-E (2-pole)

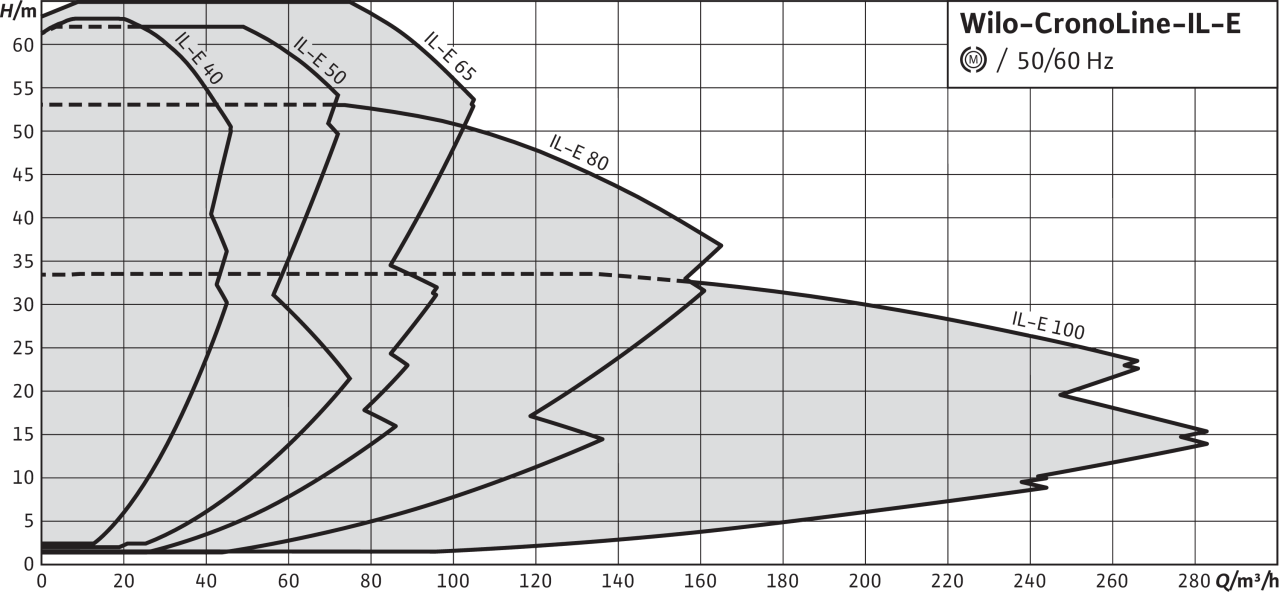

Поле рабочих характеристик Wilo-CronoLine-IL-E

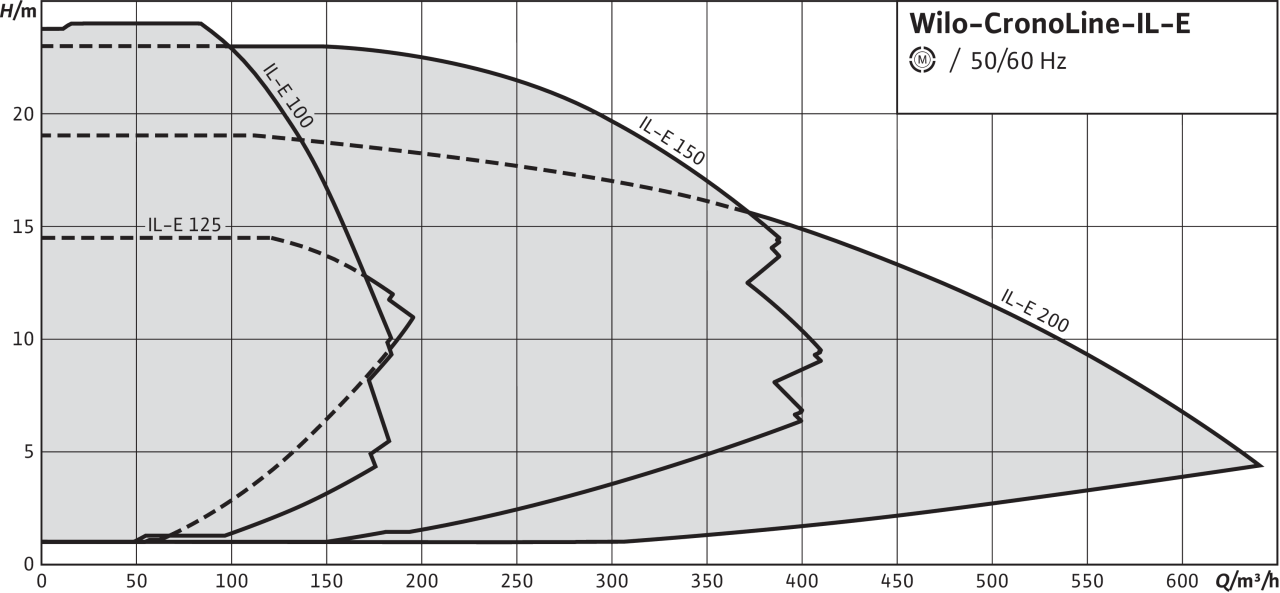

Wilo-CronoLine-IL-E (4-pole)

Wilo-CronoLine-IL-E

  • Energy savings with integrated electronic power control
  • Optional interfaces for bus communication via plug-in IF modules
  • Simple operation thanks to green button technology and display
  • Integrated dual pump control
  • Integrated full motor protection (thermal sensor) with electronic shutdown system
Parameter name Meaning
Minimum efficiency index (MEI) ≥ 0.4
Permissible temperature range from -20 ° C to + 140 ° C
Network connection 3 ~ 440 D ± 10%, 50/60 Hz
3 ~ 400 V ± 10%, 50/60 Hz
3 ~ 380 V -5% + 10%, 50/60 Hz
Protection class IP 55
Nominal inner diameter from DN 40 to DN 200
Max. operating pressure 16 bar
