| Parameter name | Value | |
|---|---|---|
| Nominal size | 200A-650A | |
| Apply | Cold and hot water, oil, other non-hazardous liquids | |
| Max. pressure | 1.0 MPa | |
| Max temperature | 120 °C | |
| Material | Body | Rolled steel for carbon steel pipelines and rolled steel for general structure |
| Grid | Stainless steel | |
| Grid | Holes | Ø 10-0.8 holes/cm2 |
| Cells | Standard size 40 mesh | |
| Connection | Flanged JIS 10K FF | |
• Available on request with mesh sizes from 20 to 100 mesh.
• Available on request in anti-corrosion version (coated by hot dip galvanizing).
• Available on request with stainless steel wet end parts (Model SU-6SS).
• Available on request in full stainless steel (Model SU-6AS).
- Used mainly for cooling and process water for dust control.
- Designed for large diameter pipelines and weighs less than a cast iron filter.

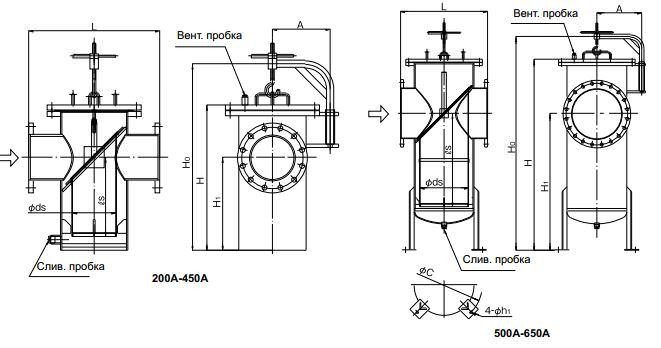

| Nominal size | L | A | Н0 | H | Н1 | C | h1 | ds | Ls | Vent. cork | Drain. cork |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 200A | 620 | 273 | 882 | 687 | 440 | - | - | 210 | 375 | R1 | R 1/2 |
| 250A | 660 | 295 | 1062 | 867 | 570 | - | - | 240 | 505 | R1 | R 1/2 |
| 300A | 710 | 330 | 1218 | 1021 | 670 | - | - | 290 | 600 | R1 | R 1/2 |
| 350A | 760 | 350 | 1306 | 1103 | 710 | - | - | 340 | 640 | R1 | R 3/4 |
| 400A | 810 | 400 | 1492 | 1253 | 810 | - | - | 390 | 740 | R1 | R 3/4 |
| 450A | 860 | 430 | 1655 | 1405 | 910 | - | - | 440 | 835 | R1 | R 3/4 |
| 500A | 910 | 455 | 2195 | 1945 | 1400 | 800 | 19 | 490 | 930 | R1 | R 3/4 |
| 550A | 960 | 480 | 2353 | 2107 | 1510 | 840 | 23 | 540 | 1030 | R1 | R 3/4 |
| 600A | 1010 | 510 | 2538 | 2237 | 1590 | 920 | 27 | 590 | 1100 | R 1-1/2 | R1 |
| 650A | 1060 | 545 | 2716 | 2419 | 1720 | 970 | 27 | 630 | 1220 | R 1-1/2 | R1 |
*H1 and H0 dimensions are for reference.

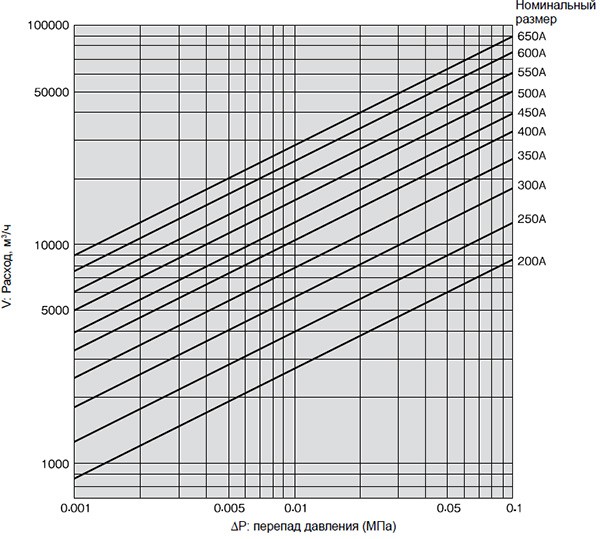

Pressure drop graph (for water)
Mesh:holes= Ø10-0.8 holes/cm2, cells = 40 mesh
