Tanks from heat exchanger plates

Tanks from heat exchanger plates
in stock
Price: specify

Quantity

Total

specify

  • Working temperature: -20 ... + 120
  • Maximum pressure: in the space between the plates: 10, 16 bar
  • Tank volume: 50-10000l

Delivery

  • Pickup from a warehouse in Kiev
  • New Mail
  • SAT
  • Deliveri
  • Courier in Kiev

Payment

  • Cashless payment with VAT
  • Online Privat24, Visa / MasterCard
Quick order
Enter your phone number and
our manager will call you back
  • Purpose and design features
  • Specifications
  • Delivery
  • Payment

Емкости из теплообменных пластин

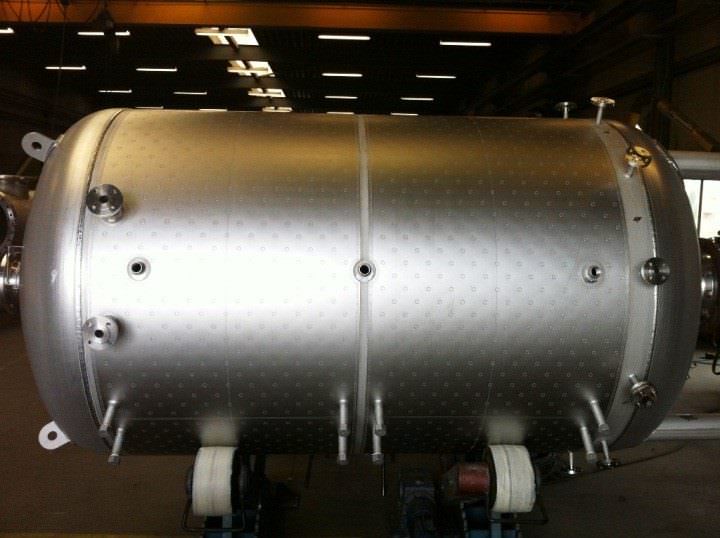

The containers are made of corrugated plates welded in pairs, which serve as a casing or "jacket". The heat carrier enters the casing - superheated water, steam or coolant - propylene glycol, ice water, depending on the characteristics of the technological process, which requires the installation of such containers.

Since the tank body is, in fact, a source of heat or cold, these containers are widely used in the food or chemical industry. It must be borne in mind that heating or cooling of the medium inside the tank is possible only from the side of the walls. To intensify heat transfer in the full volume of the tank, mechanical stirrers are used. Corrugated sheets make it possible to manufacture containers of any volume and shape.

Parameter name Meaning
Shell and cover plate material stainless steel 304, 316L
Tank volume, l from 50 to 10000, others on request
Maximum operating temperature, ° C -20 ... +150 ° C
Pressure in the space between the plates, bar 10, 16
