Float steam trap Yoshitake TSF-12

Float steam trap Yoshitake TSF12
in stock
Price: specify

Quantity

Total

specify

  • Manufacturer: Yoshitake
  • Condensate drain type: float
  • Maximum operating pressure: 1.7MPa
  • Maximum working temperature: 230(°C)
  • Maximum consumption: 8200kg/h
  • Material: Ductile cast iron, stainless steel
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Description
  • Dimensions and weight
  • Chart
  • Delivery and payment
ModelTSF-12
Nominal size40A, 50A
ApplySteam condensate
Working pressure  (Max working differential pressure)TSF-12-1: 0,01-0,1 МПа (0,1 МПа)
TSF-12-2: 0,01-0,2 МПа (0,2 МПа)
TSF-12-5: 0,01-0,5 МПа (0,5 МПа)
TSF-12-9: 0,01-0,9 МПа (0,9 МПа)
TSF-12-12: 0,01-1,2 МПа (1,2 МПа)
TSF-12-17: 0,01-1,7 МПа (1,7 МПа)
Max. temperature230 °C
MaterialBodyDuctile iron
FloatStainless steel
Valve, valve seatStainless steel
ConnectionThreaded JIS Rc Threaded NPT

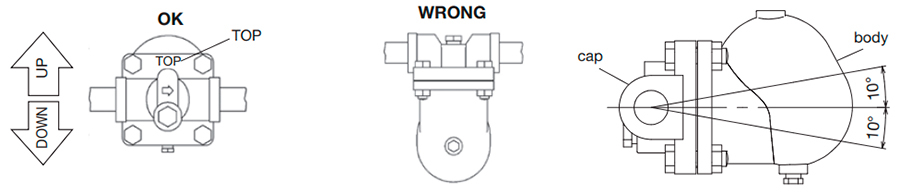

Installation Precautions

  Float steam trap Yoshitake TSF-12

When installing the product, make sure that the fluid flow direction of the inlet and outlet sides of the product is the same, and install the product correctly.
*Installing the product in the wrong direction prevents it from working properly. Check the installation position. Do not tilt the product during use.
* Incorrect position prevents normal operation.

1. Reliable performance and large flow capacity provided by the float arm system.

2. All major parts such as valves, seats, air vents and floats are made of stainless steel, which ensures excellent corrosion resistance and durability.

3. Equipment start-up time is greatly reduced by using a high pressure air vent to quickly bleed air from the steam piping system.

Nominal SizedLAAiHWeight
40ARc 1-1/220030826622821.7
50ARc 220036131928524.6

 Schematic Yoshitake TSF-12

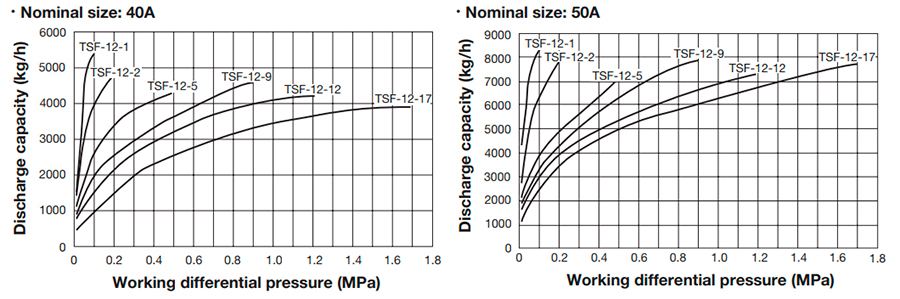

Maximum continuous performance

Float steam trap Yoshitake TSF-12

The bandwidth indicated in the graph above is the maximum value.
When designing the system, select a steam trap with sufficient safety margin (more than twice the normal level).
