Coarse filter Yoshitake SY-5

Coarse filter Yoshitake SY5Coarse filter Yoshitake SY5
in stock
Price: specify




  • Manufacturer: Yoshitake (Japan)
  • Max operating pressure: 2.0 MPa
  • Max working temperature: 220 (°С)
  • Material: ductile iron, stainless steel
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Description

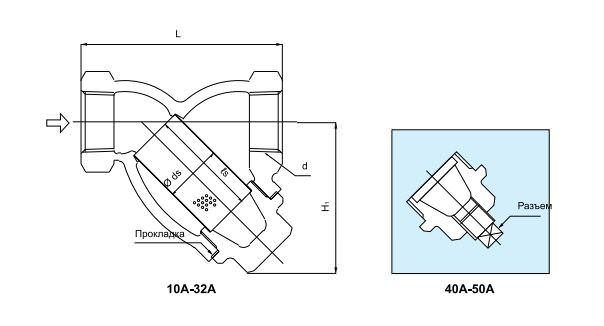

  • Dimensions and weight
  • Chart
  • Delivery and payment
Parameter nameValue
ApplySteam, air, cold and hot water, other non-hazardous liquids
Max. pressure2.0 MPa
Max temperature220 °C
MaterialBodyDuctile iron
GridStainless steel
GridHolesØ 2.5-7.21 holes/cm2
CellsStandard size 80 mesh
ConnectionJIS Rc Thread

Available on request with 20 to 100 mesh meshes (holes Ø2.5-7.21 holes/cm2) or holes only (Ø1.2- 23.8 holes/cm2).

Available in sizes from 10A to 32A with plug connection (material: S15C).

Brass connector available.

  1. Versatile, compact, lightweight and economical.
  2. Ship filter with high flow rate and the largest possible filtration area; thanks to the large filtration area, the flow rate is not reduced when the filter is clogged.
Nominal sizedLН1dsLsConnectorWeight
10ARc 3/865501832(R 1/4)0.4
15ARc 1/275552035(R 1/4)0.6
20ARc 3/490702550(R 3/8)0.9
25ARc 1110853260(R 3/8)1.4
32ARc 1-1/4135954070(R 3/8)2.2
40ARc 1-1/21451054575R 3/83.4
50ARc 21701205690R 3/84.5

 Coarse filter Yoshitake SY-5

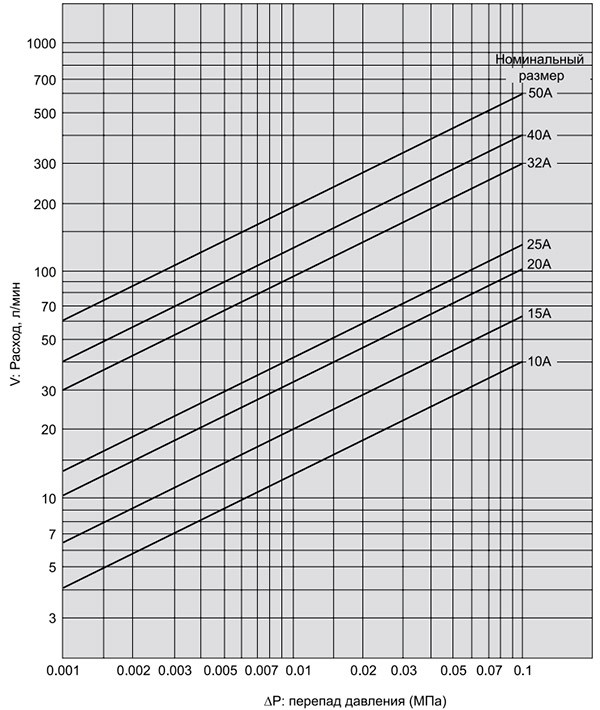

Pressure drop plot (for water)

Mesh: holes Ø=2.5-7.21 holes/cm2 , cells =80mesh

Pressure drop graph (for water)
