Water supply system Wilo-HiMulti 3 H

Water supply system WiloHiMulti 3 H
in stock
Price: specify

Quantity

Total

specify

  • Pump type: Circulating pumps
  • Scope of application: raw water intake
  • Working environment temperature: from 0 °C to +40 °C (+55 °C for 10 min)
  • Consumption: 0-7.1m3
  • Pressure: 0-53m

Delivery

  • Pickup from a warehouse in Kiev
  • New Mail - at the rates of the delivery service
  • SAT - at the rates of the delivery service
  • Deliveri - at the rates of the delivery service

Payment

  • Cashless payment with VAT
  • Online Privat24, Visa / MasterCard
Quick order
Enter your phone number and
our manager will call you back
  • Features of the lineup
  • Characteristic field
  • Technical details
  • Delivery
  • Payment

Water supply system with diaphragm pressure vessel in non-self-priming design (HiMulti 3 H) or self-priming design (HiMulti 3 HP). Application of these systems: water supply (permission for use in drinking water supply according to ACS), watering, irrigation and irrigation, rainwater use.

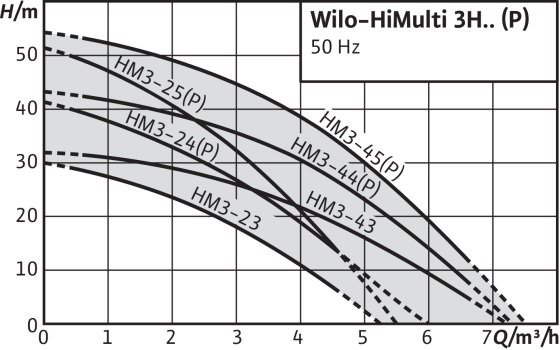

Поле рабочих характеристик Wilo-HiMulti 3 H

Parameter name Meaning
Electrical connection to the network 1 ~ 230 V, 50 Hz
Permissible temperature of the pumped liquid 0 ° C to +40 ° C (+55 ° C for 10 min.)
Permitted. ambient temperature -15 ° C to +40 ° C
Permitted. storage temperature -30 ° C to +60 ° C
Max. add. operating pressure 8 bar
Max. add. supply pressure 3 bar
Tank volume 50 or 100 l
Setting range for pressure switch 1-5 bar
Protection class IP 54
Suction side connection Rp1
Pressure side connection Rp1

For information on automation, see the Wilo-HiControl 1 documentation.

  • Pickup from a warehouse in Kiev
  • New Mail - at the rates of the delivery service
  • SAT - at the rates of the delivery service
  • Deliveri - at the rates of the delivery service
  • Cashless payment with VAT
  • Online Privat24, Visa / MasterCard
Water supply system WiloHiMulti 3 H
