| Model | TS-5V | |
| Nominal size | 8A, 10A, 15А, 20А, 25A | |
| Application | Steam, steam condensate | |
| Max. pressure | 2,1 МПа | |
| Maximum permissible back pressure | 0.4 MPa | |
| Maximum temperature | 220 °C | |
| Flow direction | horizontally or vertically | |
| Material | Body | Stainless steel |
| Valve seat | Stainless steel | |
| Connection | JIS Rc or NPT | |
The standard product operates at a temperature 15°C below the saturated steam temperature.
Available with operating temperature 5°C below saturated steam temperature (Model: TS-5_-5), 25°C below saturated steam temperature (Model: TS-5_-25).
Saturated steam temperature below 5°C is recommended for equipment that directly uses steam and does not want condensation to enter the steam.
TS-5 can be used as an air vent for steam; in this case, to reduce evaporation, a temperature of 25°C below the saturated steam temperature is recommended.
- Compact and lightweight design, it can be installed both horizontally and vertically.
- No steam leakage as it operates below saturated steam temperature.
- No adjustment is required since operation is carried out in accordance with the saturated steam temperature.
- Improved corrosion resistance thanks to stainless steel housing and wetted parts.
- BP is equipped with a purge valve to reduce initial startup time.
- Suitable for line tracing, food equipment, medical equipment. and laundry equipment.
TS-5V
| Nominal size | L, mm | ∅D, mm | Weight, kg |
|---|---|---|---|
| 8A | 55 | 47 | 0.55 |
| 10A | 55 | 47 | 0.55 |
| 15A | 55 | 47 | 0.54 |
| 20A | 60 | 47 | 0.54 |
| 25A | 60 | 47 | 0.51 |

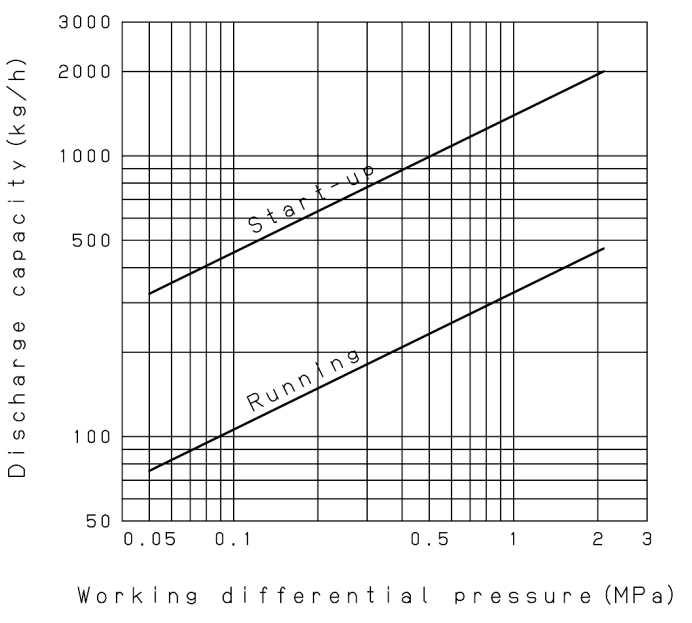

Maximum continuous performance
