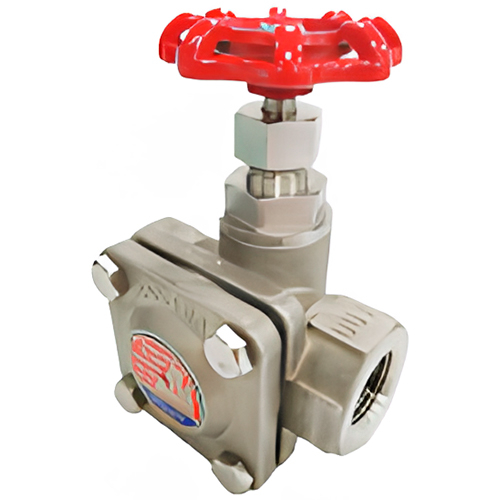

Thermostatic steam trap Yoshitake TS-5BP

Thermostatic steam trap Yoshitake TS5BP
under the order
Price: specify

Quantity

Total

specify

  • Manufacturer: Yoshitake
  • Condensate drain type: thermostatic
  • Maximum operating pressure: 1.0MPa
  • Maximum working temperature: 185(°C)
  • Material: stainless steel
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Description
  • Dimensions and weight
  • Chart
  • Delivery and payment
Model TS-5BP
Nominal size 15A, 20A
Application Steam, steam condensate
Max. pressure 1.0 MPa *
Maximum permissible back pressure 0.4 MPa
Maximum temperature 183 °C
Flow direction horizontally or vertically, as long as the cover is kept upward at an angle between 0 to 90 degrees.
Material Body Stainless steel
Valve seat Stainless steel
Connection JIS Rc or NPT

The standard product operates at a temperature 15°C below the saturated steam temperature.
Available with operating temperature 5°C below saturated steam temperature (Model: TS-5_-5), 25°C below saturated steam temperature (Model: TS-5_-25).
Saturated steam temperature below 5°C is recommended for equipment that directly uses steam and does not want condensation to enter the steam.
TS-5 can be used as an air vent for steam; in this case, to reduce evaporation, a temperature of 25°C below the saturated steam temperature is recommended.

Thermostatic steam trap Yoshitake TS-5BP

  1. Compact and lightweight design, it can be installed both horizontally and vertically.
  2. No steam leakage as it operates below saturated steam temperature.
  3. No adjustment is required since operation is carried out in accordance with the saturated steam temperature.
  4. Improved corrosion resistance thanks to stainless steel housing and wetted parts.
  5. BP is equipped with a purge valve to reduce initial startup time.
  6. Suitable for line tracing, food equipment, medical equipment. and laundry equipment.

TS-5BP

Nominal sizeL, mmH, mmWeight, kg
15A801020.76
20A801020.7

Thermostatic condensate trap Yoshitake TS-5BP

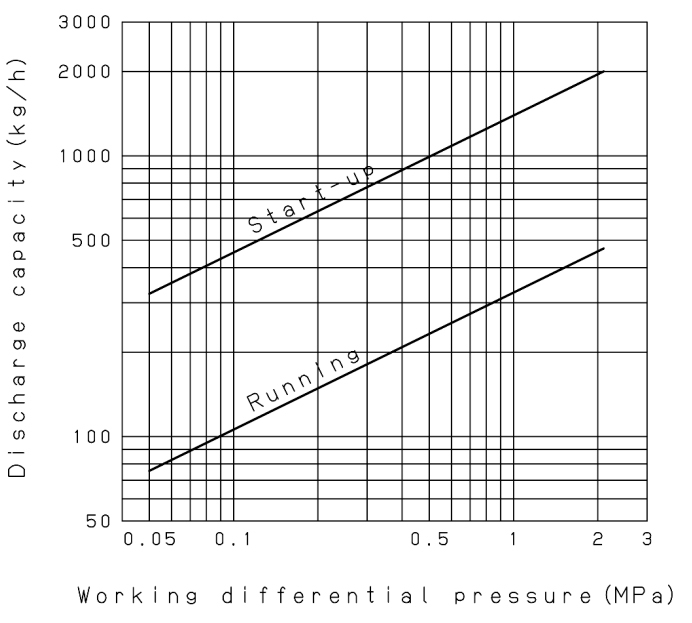

Maximum continuous performance

Thermostatic steam trap Yoshitake TS-5BP
