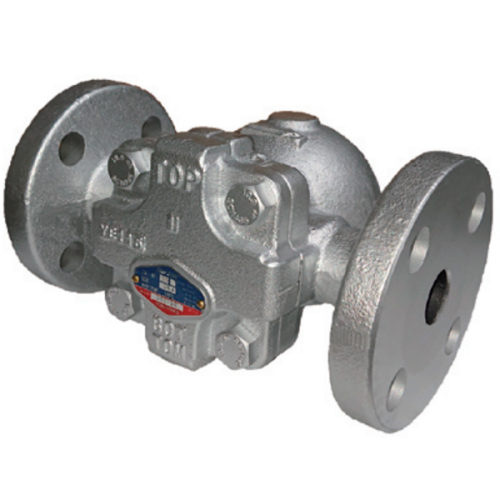

| Model | TSF-8F | |
| Nominal size | 15A, 20A, 25A | |
| Application | Steam condensate | |
| Working pressure (Max. operating differential pressure) | TSF-8F-5: 0.01-0.5 MPa (0.5 MPa) TSF-8F-10: 0.01-1.0 MPa (1.0 MPa) TSF-8F-21: 0.01-2.1 MPa (2.1 MPa) | |
| Max. temperature | 220 °C | |
| Material | Case | Ductile iron |
| Float | Stainless steel | |
| Valve, valve seat | Stainless steel | |
| Connection | JIS 10K FF flange JIS 20K FF flanged ASME 150/300, ENPN25 | |
Installation Precautions
Flow direction
&bul; Standard flow direction – from left to right, but the direction can be changed at the installation site.
See reassembly procedures to change flow direction.

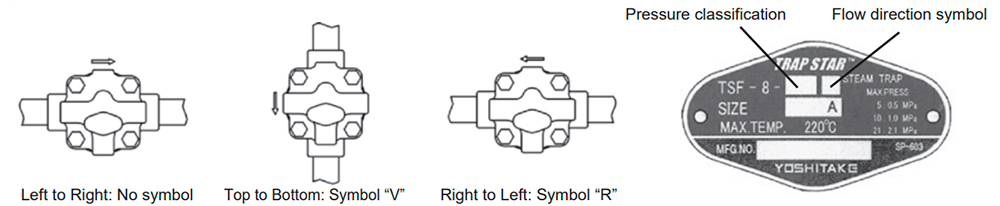

&bul; If you have reassembled the product by changing its flow direction, write the symbol on the plate according to the new flow direction. V – for top-down flow or R – for flow from right to left.
| Flow direction | Symbol |
| Left to right (default) | Empty |
| Top to bottom | V |
| Right to left | R |
*Available at the bottom and top. To make it easier to open and drain the trap when using an upward flow direction, shorten the vertical pipe to the trap.
1. TSF-8F can effectively discharge condensate without retention with reliable operation due to the difference in specific gravity between steam and condensate.
2. Since the main parts are attached to the cover, it is possible to detach the cover without removing the body itself from the piping. This makes it easier to inspect and replace parts.
3. Excellent corrosion resistance and durability due to the fact that all main parts are made of stainless steel.
4. The filter is installed to protect internal parts from foreign objects and to improve durability.

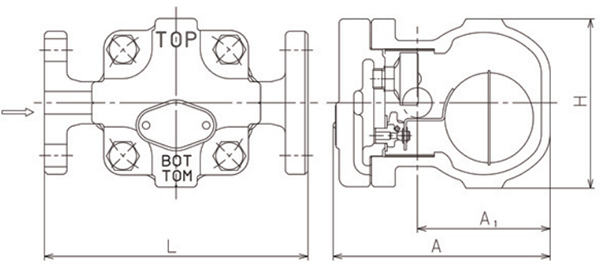

| Nominal size | d | L | A | A1 | H | Weight, kg |
|---|---|---|---|---|---|---|
| 15A | 15 | 175 | 147 | 90 | 113 | 5.2 |
| 20A | 20 | 195 | 147 | 90 | 113 | 6.0 |
| 25A | 25 | 215 | 147 | 90 | 113 | 7.1 |

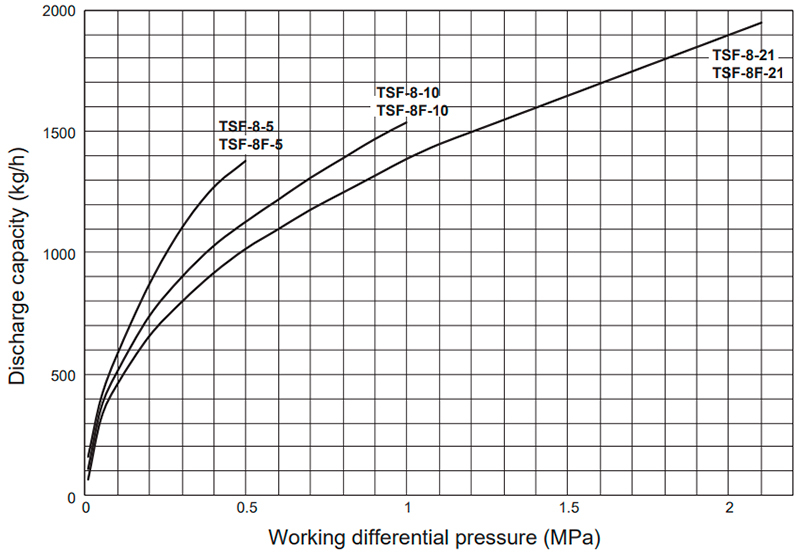

Maximum continuous performance
The discharge capacity shown on the above chart is the maximum value.
In designing a system, select a steam trap with a sufficient safety factor (more than two times the regular level).
