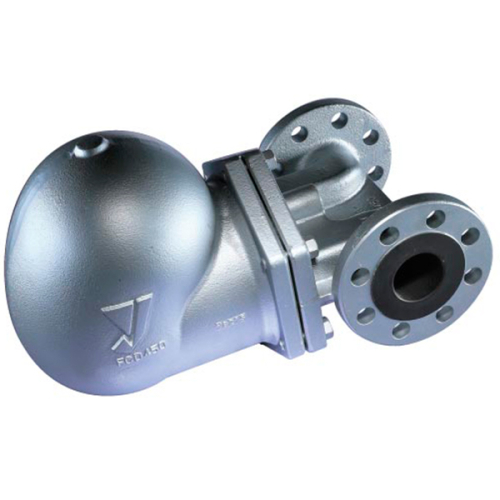

Float steam trap Yoshitake TSF-13F

Float steam trap Yoshitake TSF13F
under the order
Price: specify

Quantity

Total

specify

  • Manufacturer: Yoshitake
  • Condensate drain type: float
  • Maximum operating pressure: 1.4MPa
  • Maximum working temperature: 220(°C)
  • Maximum consumption: 24000kg/h
  • Material: carbon steel, stainless steel
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Description
  • Dimensions and weight
  • Chart
  • Delivery and payment
ModelTSF-13CF
Nominal size40A, 50A
ApplicationSteam condensate
Maximum pressure1.0 MPa1.6 MPa
Working pressure (Max. working pressure)TSF-13-5: 0.5 MPa
TSF-13-10: 1.0 MPa
TSF-13-5: 0.5 MPa
TSF-13-10: 1.0 MPa
TSF-13-14: 1.4 MPa
Max. temperature220 °C
MaterialCaseCast carbon steel
FloatStainless steel
Valve, valve seatStainless steel
ConnectionJIS 10KRF
JIS20KRF
EN 1092 PN16 or PN25
ASME class 150
ASME class 300

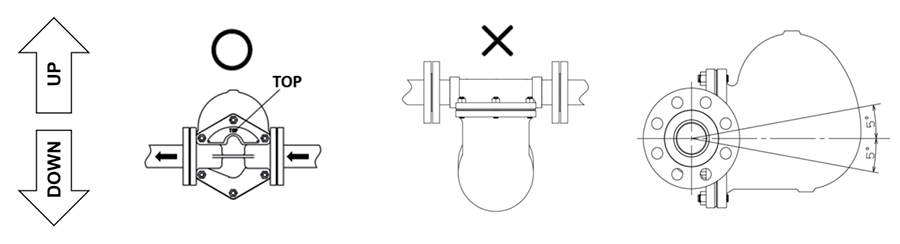

Installation precautions

  Float steam trap Yoshitake TSF-13CF

*1. Install a strainer (recommended: 80 mesh) on the inlet side to protect the TSF-13CF from scale and other substances. Due to the float arm design, foreign matter stuck on the valve and valve seat may cause significant steam leakage.

*2. Maintain the tilt of the product within 5°. Support the product as needed.

*3. Installing the product in the wrong direction will prevent it from working properly. Check the installation position. Do not tilt the product during use. Incorrect position prevents normal operation.

1. Reliable operation and high throughput provided by the float lever system.

2. All major parts such as valves, seats, vents and floats are made of stainless steel, providing excellent corrosion resistance and durability.

3. Equipment start-up time is significantly reduced when using a high-pressure air vent to quickly release air from the steam piping system.

4. Stable operation is achieved due to the large float.

TSF-13F

Nominal sizeConnectiondLAA1HWeight
40AJIS 10KRF/20KRF4022842335329024.0
EN 1092 PN16 or PN254023042835329024.5
ASME150LB4022141635329023.0
ASME300LB4022143135329025.7
50AJIS 10KRF/20KRF5023943635829025.0
EN 1092 PN16 or PN255023044135829025.3
ASME150LB5022043335829024.5
ASME300LB5023944135829026.8

Float steam trap Yoshitake TSF-13F

Maximum continuous performance

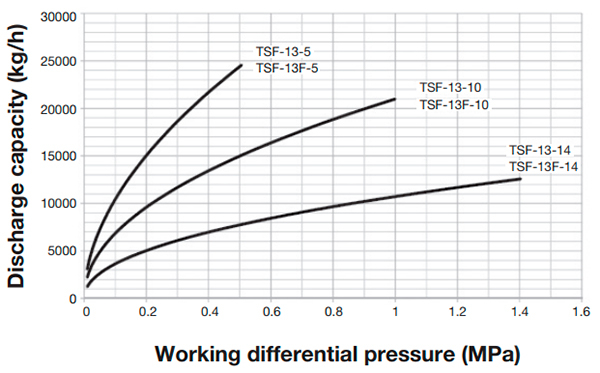

Nominal size 40A

Float steam trap Yoshitake TSF-13F

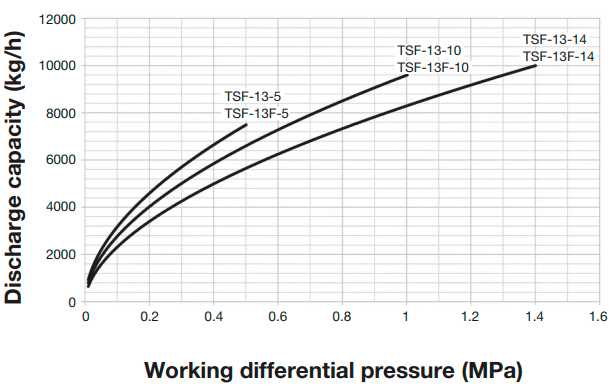

Nominal size 50A

Float steam trap Yoshitake TSF-13F

The throughput shown in the graph above is the maximum value.
When designing the system, select a steam trap with sufficient safety margin (more than twice the normal level).
