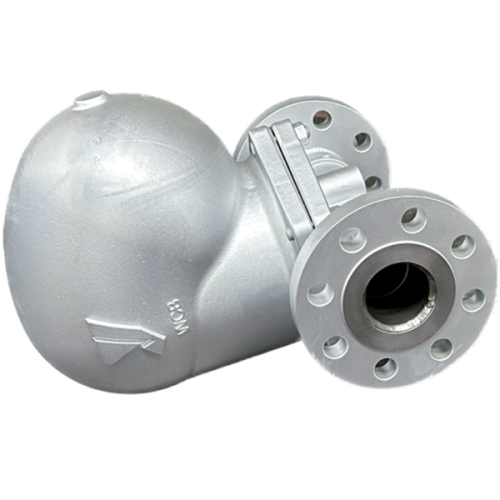

| Model | TSF-13CF | ||
| Nominal size | 40A, 50A | ||
| Application | Steam condensate | ||
| Maximum pressure | 1.0 MPa | 1.6 MPa | |
| Working pressure (Max. working pressure) | TSF-13-5: 0.5 MPa TSF-13-10: 1.0 MPa | TSF-13-5: 0.5 MPa TSF-13-10: 1.0 MPa TSF-13-14: 1.4 MPa | |
| Max. temperature | 220 °C | ||
| Material | Case | Cast carbon steel | |
| Float | Stainless steel | ||
| Valve, valve seat | Stainless steel | ||
| Connection | ASME150 LB | ASME300 LB, EN PN25/40 | |
Installation precautions
*1. Install a strainer (recommended: 80 mesh) on the inlet side to protect the TSF-13CF from scale and other substances. Due to the float arm design, foreign matter stuck on the valve and valve seat may cause significant steam leakage.
*2. Maintain the tilt of the product within 5°. Support the product as needed.
*3. Installing the product in the wrong direction will prevent it from working properly. Check the installation position. Do not tilt the product during use. Incorrect position prevents normal operation.
1. Reliable operation and high throughput provided by the float lever system.
2. All major parts such as valves, seats, vents and floats are made of stainless steel, providing excellent corrosion resistance and durability.
3. Equipment start-up time is significantly reduced when using a high-pressure air vent to quickly release air from the steam piping system.
4. Stable operation is achieved due to the large float.

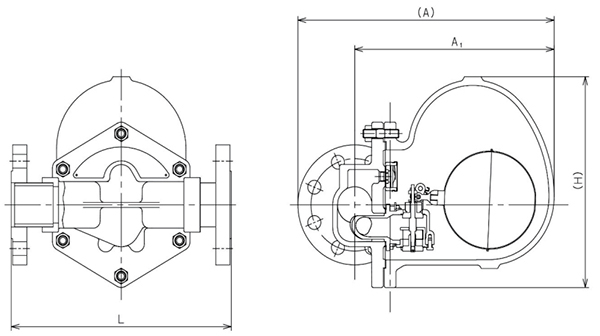

TSF-13CF
| Nominal size | Connection | L | A | A1 | H | Weight |
| 40A | ASME150LB | 327 | 343 | 280 | 290 | 24.50 |
| ASME300LB | 327 | 358 | 280 | 290 | 27.0 | |
| EN PN25/40 | 327 | 355 | 280 | 290 | 28.0 | |
| 50A | ASME150LB | 320 | 365 | 290 | 290 | 26.5 |
| ASME300LB | 320 | 373 | 290 | 290 | 28.5 | |
| EN PN25/40 | 320 | 373 | 290 | 290 | 29.0 |
Maximum continuous performance

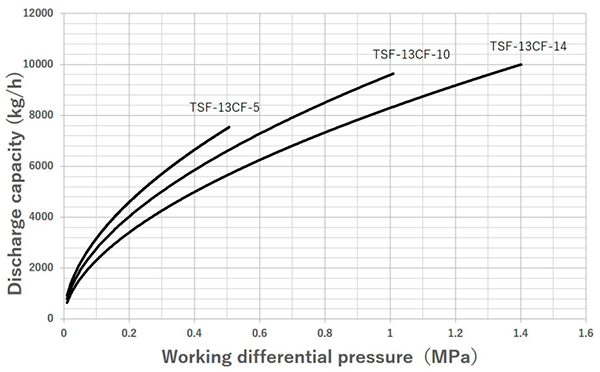

Nominal size 40A

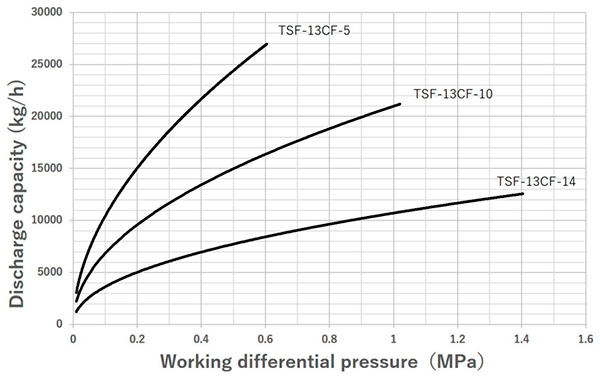

Nominal size 50A
The throughput shown in the graph above is the maximum value.
When designing the system, select a steam trap with sufficient safety margin (more than twice the normal level).
