Model | TSF-13 | ||
Nominal size | 40A, 50A | ||
Application | Steam condensation | ||
Working pressure & nbsp; (Max working pressure) | TSF-13-5: 0,5 МПа TSF-13-10: 1,0 МПа TSF-13-14: 1,4 МПа | ||
Min. slave. pressure | 0.01 MPa | ||
Max. temperature | 220 ° C | ||
Material | Corpus | Ductile Iron | |
Float | Stainless steel | ||
Valve, valve seat | Stainless steel | ||
Connection | Threaded JIS Rc |
Installation Precautions

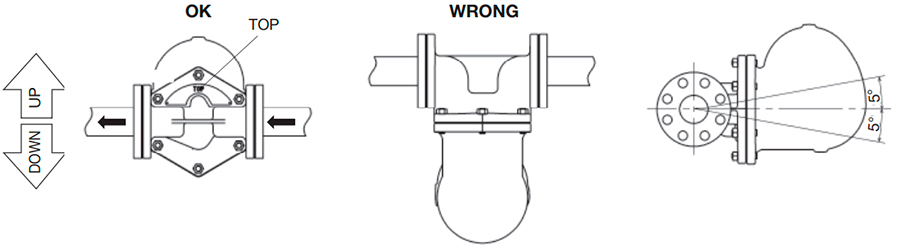

When installing the product, make sure that the direction of liquid flow from the inlet and outlet sides of the product is the same, and install the product correctly.
* Installing the product in the wrong direction will prevent normal operation. Check the installation position. Do not tilt the product during use.
* Incorrect position interferes with normal operation.
1. Reliable operation and high throughput provided by the float arm system.
2. All major parts such as valves, seats, air vents and floats are made of stainless steel for excellent corrosion resistance and durability.
3. Equipment start-up times are greatly reduced by using a high pressure air vent to quickly bleed air from the steam line system.
Nominal size | d | L | A | A1 | H | Weight |
40A | Rc 1-1 / 2 | 270 | 313 | 281 | 290 | 19.0 |
50A | Rc 2 | 300 | 328 | 291 | 290 | 20.0 |
Maximum Continuous Performance

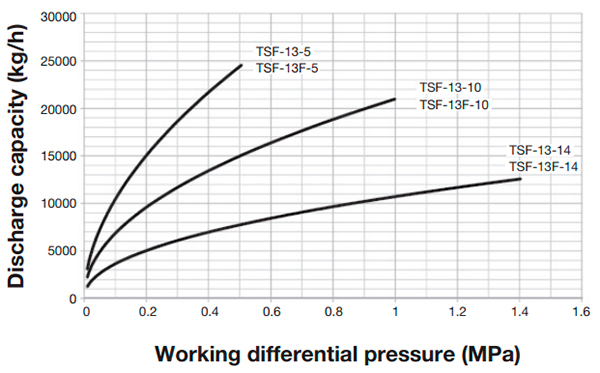

40A Discharge Capacity Chart

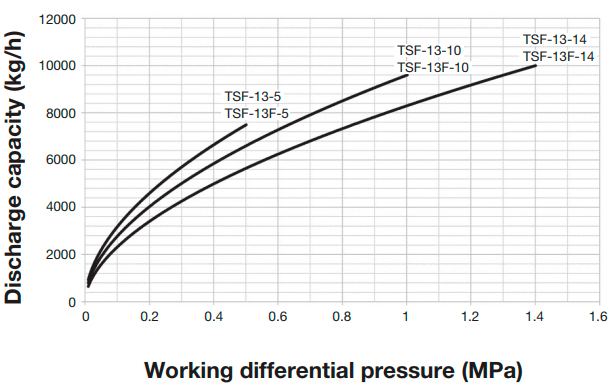

50A Discharge Capacity Chart
The bandwidth shown in the graph above is the maximum value.
When designing your system, select a steam trap with sufficient safety factor (more than double the normal level).
