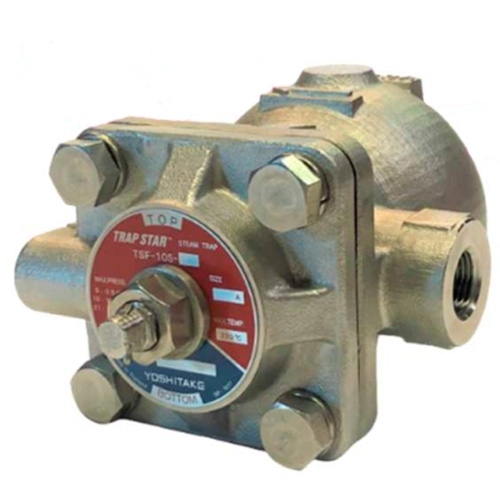

Model | TSF-11S | |
---|---|---|
Nominal size | 25A-50A | |
Application | Steam condensate | |
Working pressure (Max. operating differential pressure) | TSF-11S-5: 0.01-0.5 MPa TSF-11S-10: 0.01-1.0 MPa TSF-11S-21: 0.01-2.1 MPa | |
Max. temperature | 220 °C | |
Material | Case | Cast stainless steel |
Float | Stainless steel | |
Valve, valve seat | Stainless steel | |
Connection | Threaded JIS Rc Threaded NPT |
Installation precautions
After installation is completed, adjust the direction on the nameplate under non-pressure conditions.
Secure the tap with a wrench and loosen the nut. Turn the faucet and adjust the direction of the sign for the TOP and DOWN signs
respectively for the up and down directions. Secure the faucet with a wrench and tighten the nut after adjustment.
- Model TSF-11S can effectively remove condensate without retention, ensuring energy-saving steam system without steam loss.
- Built-in thermostatic air vent vents air from pipes and reduces warm-up time.
- By turning the tap it is possible to apply different flow directions, both for horizontal and vertical installation. The flow direction can be easily switched without disassembly, for example by removing the cover.
- Since the main parts are mounted on the cover, you can remove the cover without removing the body itself from the pipeline. This makes it easier to inspect and replace parts.
TSF-11S
Nominal size | d | L | A | A11 | H | Weight |
25A | Rc 1 | 190 | 242 | 146.5 | 186 | 9.1 |
32A | Rc 1-1/4 | 190 | 242 | 146.5 | 186 | 9.2 |
40A | Rc 1-1/2 | 205 | 242 | 146.5 | 186 | 9.4 |
50A | Rc 2 | 220 | 242 | 146.5 | 186 | 9.7 |

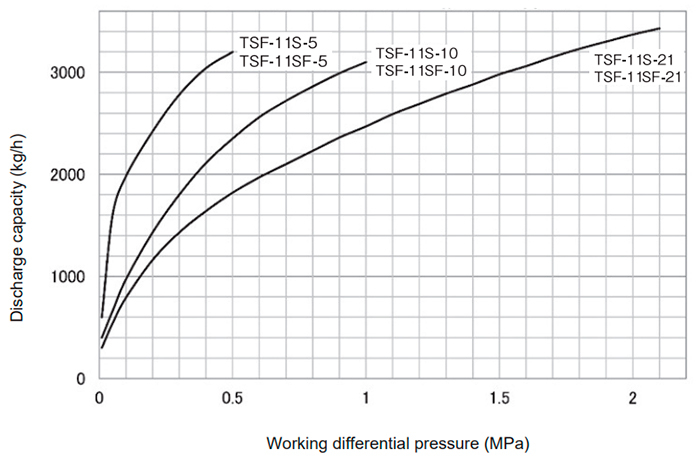

TSF-11S maximum consistent performance
The bandwidth shown in the graph above is the maximum value. When designing your system, select a steam trap with sufficient safety factor (more than double the normal level).
