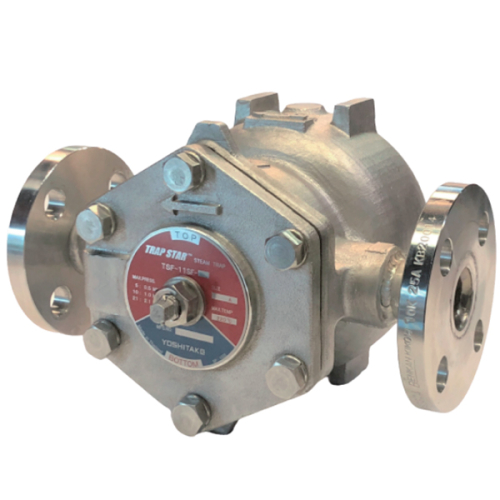

Float steam trap Yoshitake TSF-10SF

Float steam trap Yoshitake TSF10SF
under the order
Price: specify

Quantity

Total

specify

  • Manufacturer: Yoshitake
  • Condensate drain type: float
  • Maximum operating pressure: 2.1MPa
  • Maximum working temperature: 220(°C)
  • Maximum consumption: 1950kg/h
  • Material: cast stainless steel, stainless steel
  • Compound: DN15-DN25
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Description
  • Dimensions and weight
  • Chart
  • Delivery and payment
ModelTSF-10SF
Nominal size15A-25A
ApplicationSteam condensate
Working pressure (Max. operating differential pressure)TSF-10SF-5 0.01-0.5 MPa
TSF-10SF-10 0.01-1.0 MPa
TSF-10SF-21 0.01-2.1 MPa
Max. temperature220 °C
MaterialCaseCast stainless steel
FloatStainless steel
Valve, valve seatStainless steel
ConnectionJIS 10K FF Flange
JIS 20K FF Flange
ASME Class 150 Flanged
ASME Class 300 Flange
EN PN25 Flange

Precautions during installation

Float steam trap Yoshitake TSF-10SF

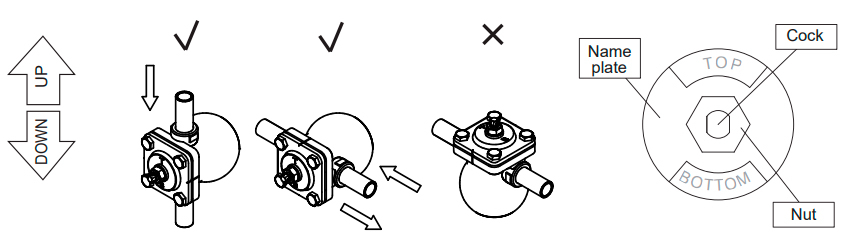

After installation is completed, adjust the direction on the nameplate under non-pressure conditions.
Secure the tap with a wrench and loosen the nut. Turn the faucet and adjust the direction of the sign for the TOP and DOWN signs
respectively for the up and down directions. Secure the faucet with a wrench and tighten the nut after adjustment.
*In case of bottom-up installation, to make it easier to open and drain the trap when using the upward flow direction, shorten the vertical pipe to the trap.

1. The TSF-10SF can efficiently drain condensate without retention, enabling energy saving of the steam system without losing steam.

2. An integrated thermostatic air vent removes air from the lines and shortens the warm-up time.

3. By turning the valve, it is possible to apply different flow directions, both for horizontal and vertical installation. The flow direction can be easily switched without disassembly, for example by removing the cover.

4. Since the main parts are attached to the cover, it is possible to detach the cover without removing the body from the pipeline. This makes it easier to inspect and replace parts. & Nbsp;

TSF-10SF

Nominal sizeLAA1HWeight(JIS 10K)Weight(JIS 20K)
15A19517388.51104.85.0
20A21517388.51105.25.4
25A23517388.51106.26.6

TSF-10F diagram

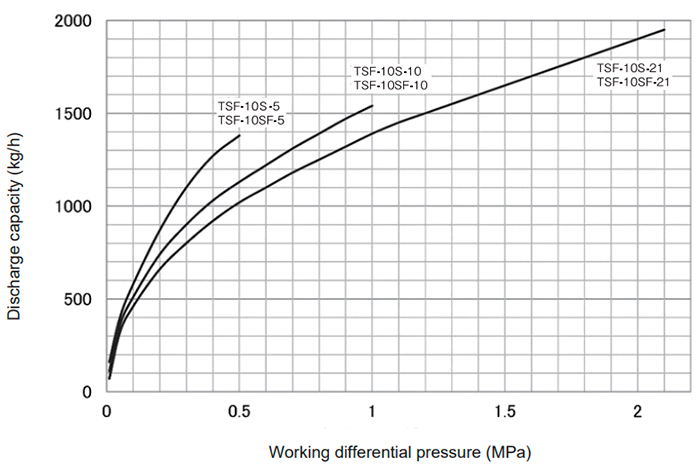

TSF-10SF Maximum Continuous Performance

Float steam trap Yoshitake TSF-10SF

The bandwidth shown in the graph above is the maximum value. When designing your system, select a steam trap with sufficient safety factor (more than double the normal level).
