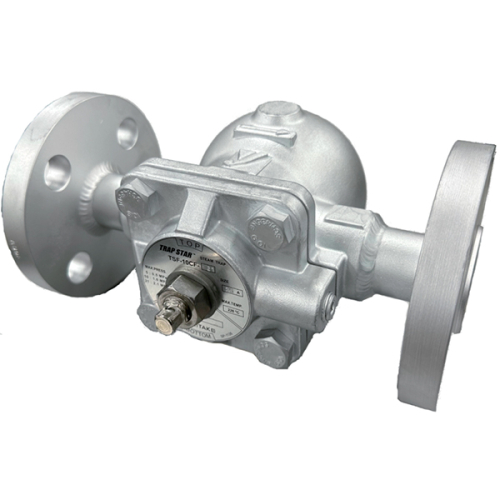

| Model | TSF-10CF | |
| Nominal size | 15A, 20A, 25A | |
| Application | Steam condensate | |
| Working pressure (Max. operating differential pressure) | TSF-10CF-5 0.01-0.5 MPa TSF-10CF-10 0.01-1.0 MPa TSF-10CF-21 0.01-2.1 MPa | |
| Max. temperature | 220 °C | |
| Material | Case | Cast carbon steel |
| Float | Stainless steel | |
| Valve, valve seat | Stainless steel | |
| Connection | ASME 150LB RF, ASME 300LB RF, EN PN 25/40 flanged | |
Installation precautions

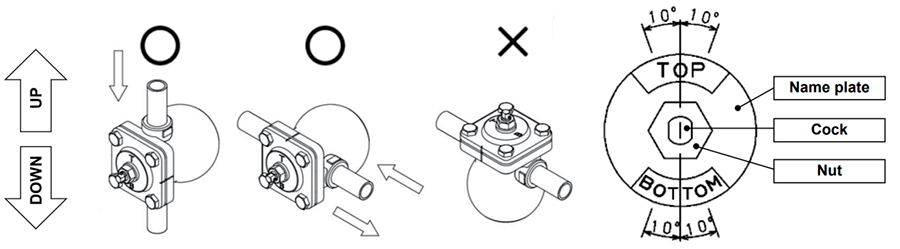

After installation is completed, adjust the direction on the nameplate under non-pressure conditions.
Secure the tap with a wrench and loosen the nut. Turn the faucet and adjust the direction of the sign for the TOP and DOWN signs
respectively for the up and down directions. Secure the faucet with a wrench and tighten the nut after adjustment.
1. Model TSF-10 can efficiently remove condensate without retention, ensuring energy-saving steam system without steam loss. Suitable for steam equipment used in different industries: air conditioning equipment, hot water equipment, installations and food products.
2. The built-in thermostatic air vent vents air from the pipes and reduces warm-up time.
3. By turning the tap it is possible to apply different flow directions, both for horizontal and vertical installation. The flow direction can be easily switched without disassembly, for example by removing the cover.
4. Since the main parts are mounted on the cover, you can remove the cover without removing the body itself from the pipeline. This makes inspection and replacement of parts easier.

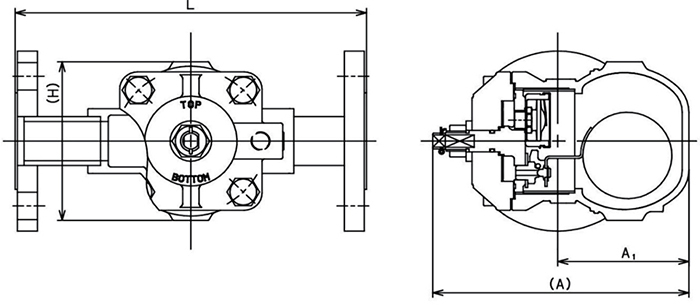

TSF-10CF
| Nominal size | L | A | A1 | H | Weight | ||
|---|---|---|---|---|---|---|---|
| ASME150LB | ASME300LB | EN PN25/40 | |||||
| 15A | 195 | 173 | 88.5 | 110 | 4.8 | 5.0 | 5.0 |
| 20A | 215 | 173 | 88.5 | 110 | 5.2 | 5.4 | 5.4 |
| 25A | 235 | 173 | 88.5 | 110 | 6.2 | 6.6 | 6.6 |

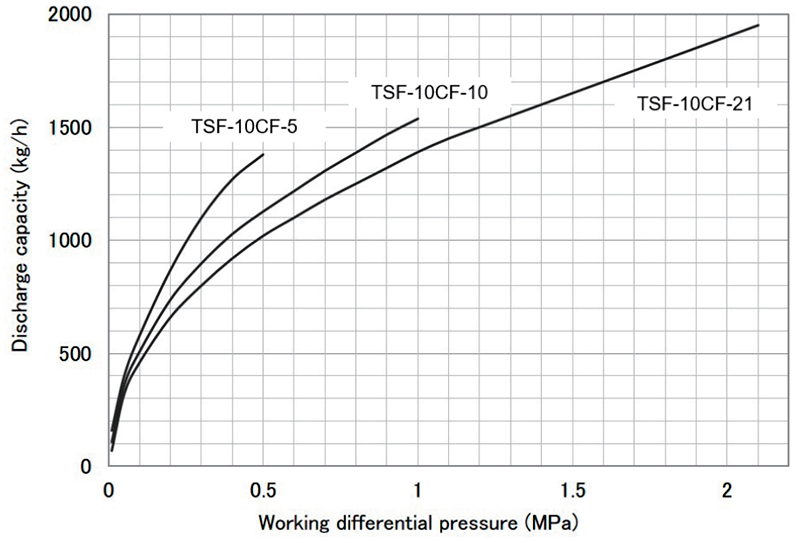

Maximum continuous performance TSF-10CF
The throughput shown in the graph above is the maximum value. When designing your system, select a steam trap with sufficient safety margin (more than twice the normal level).
