| Model | TSD-46 | |
| Application | Steam condensate | |
| Nominal sizes | 15A, 20A, 25A | |
| Working pressure | 0.05-4.6 MPa | |
| Flow direction | horizontal or vertical | |
| Allowable back pressure | Inlet pressure no more than 50% | |
| Max. temperature | 425 °C | |
| Material | Case | Forged stainless steel |
| Disk, saddle | Stainless steel | |
| Connection | Socket welding (ASME) | |

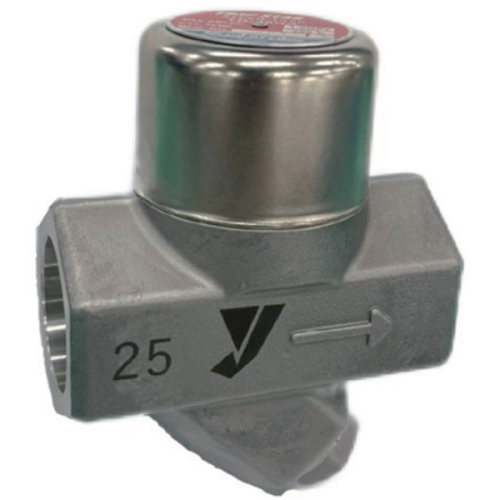

1. TSD-46 thermodynamic condensate trap with a maximum operating pressure of 4.6 MPa.
2. Wetted parts are made of stainless steel and the body is made of forged stainless steel.
3. The maximum unloading capacity is 830 kg/h.

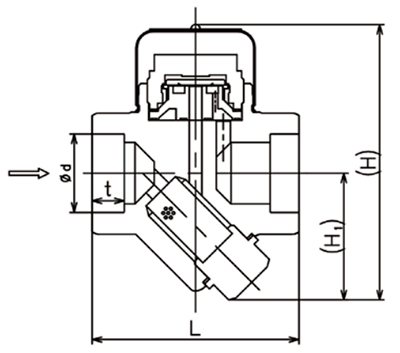

TSD-46
| Nominal size | Connection | d | L | t | H1 | H | Weight, kg |
|---|---|---|---|---|---|---|---|
| 15A | Socket welding (ASME) | 22 | 90 | 11 | 55 | 120 | 1.8 |
| 20A | 27.4 | 90 | 14 | 55 | 120 | 1.7 | |
| 25A | 34.1 | 90 | 14 | 55 | 120 | 1.6 |

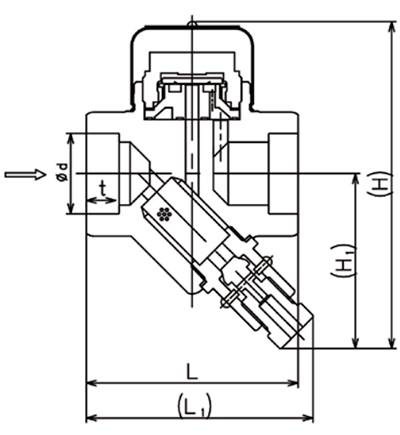

TSD-46 with option (blow-off valve)
| Nominal size | Connection | d | L | L1 | t | H1 | H | Weight |
|---|---|---|---|---|---|---|---|---|
| 15A | Socket welding (ASME) | 22 | 90 | 97 | 11 | 75 | 140 | 1.9 |
| 20A | 27.4 | 90 | 97 | 14 | 75 | 140 | 1.8 | |
| 25A | 34.1 | 90 | 97 | 14 | 75 | 140 | 1.7 |

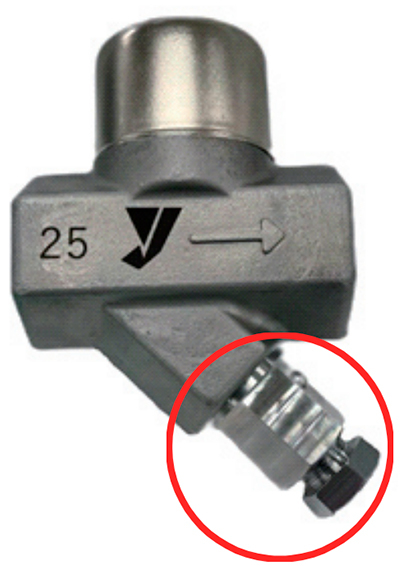

Purge valve (optional)

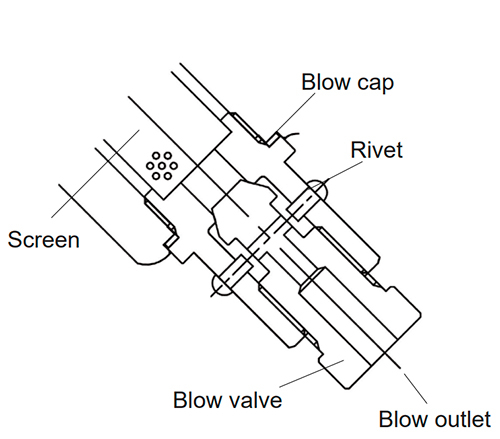

Purge valve available as an option. Used to drain condensate, scale or dirt into the atmosphere using internal pressure.

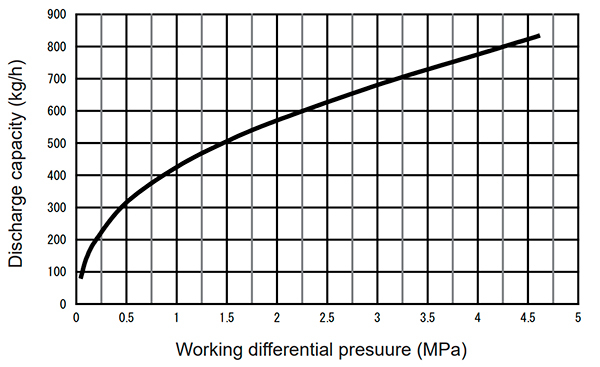

Maximum continuous performance (15A-25A)
