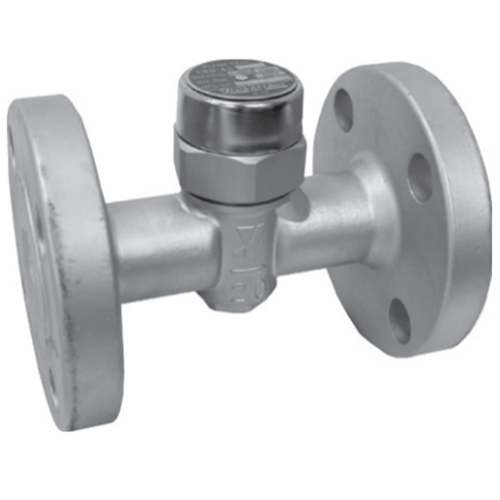

Condensate drain thermodynamic Yoshitake TSD-42F

Condensate drain thermodynamic Yoshitake TSD42F
under the order
Price: specify

Quantity

Total

specify

  • Manufacturer: Yoshitake
  • Condensate drain type: thermodynamic
  • Maximum operating pressure: 4.2MPa
  • Maximum working temperature: 425(°C)
  • Maximum consumption: 710kg/h
  • Material: stainless steel
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Description
  • Dimensions and weight
  • Chart
  • Delivery and payment
ModelTSD-42F
ApplicationSteam condensate
Working pressure0.035-1.0 MPa0.035-2.0 MPa0.035-3.0 MPa0.035-4.2 MPa
Allowable back pressureInlet pressure no more than 50%
Max. temperature300°C425°C
MaterialCaseStainless steel (SCS2A)
Disk, saddleStainless steel (special heat  treatment)
ConnectionJIS10KRFJIS20KRFJIS30KRFJIS40KRF

Installation position

Installation position of Yoshitake TSD-42< /picture>

1. Stainless steel is used to manufacture the main parts, which increases corrosion resistance.

2. The steam trap can operate at a temperature of 425˚C and a pressure of 4.2 MPa, so it can be used in various industries, such as heavy, light and general industry.

3. Bimetallic material solves the air problem and allows cold condensate or air to be released smoothly at the start of operation, allowing steam equipment to start up efficiently.

4. The insulating cover avoids frequent switching on and off.

5. Installation is easy because the device can be installed vertically or horizontally upon request.

TSD-42F (JIS 20KRF)

Nominal sizedLHH1Weight
15A1512776232.0
20A2013179242.4
25A251318627.53.5

TSD-42F (JIS 30KRF)

Nominal sizedLHH1Weight
15A1513576233.4
20A2013579243.6
25A251398627.54.6

TSD-42F (JIS 40KRF)

Nominal sizedLHH1Weight
15A1513976233.6
20A2013979244.0
25A251448627.55.0

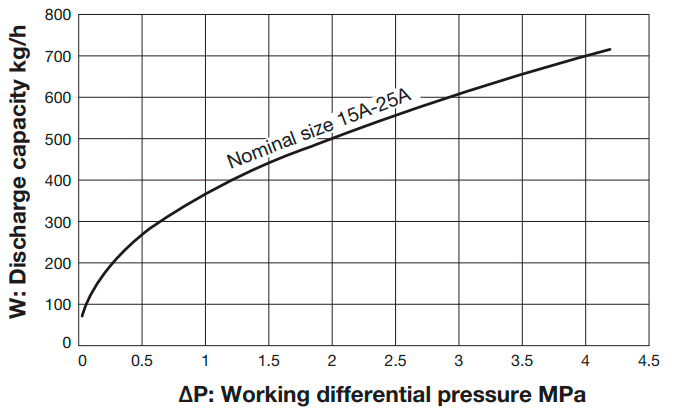

Thermodynamic condensate trap Yoshitake TSD-42F

Maximum continuous performance (10A-25A)

Condensate drain thermodynamic Yoshitake TSD-42F

&bul; To select the product size, set the safety factor to 4-5. For example, if you require a trap with a capacity of 100 kg/h, then for maximum efficiency, select a trap that can discharge 400 to 500 kg/h.
&bul; Backpressure (outlet pressure) should be considered when selecting flow capacity. This is because the capacity of the steam trap depends on the operating pressure drop (the difference between the inlet and outlet pressures).
For example, to find the capacity obtained at an inlet pressure of 1.0 MPa and an outlet pressure of 0.2 MPa, draw a vertical line up from the operating differential pressure point of 0.8 MPa in the table above.
