Brazed heat exchanger SWEP DB200

Brazed heat exchanger SWEP DB200
in stock
Price: specify

Quantity

Total

specify

  • Manufacturer: SWEP
  • Type of: DB
  • Maximum operating pressure: 56
  • Model: 200
Quick order
Enter your phone number and
our manager will call you back
  • Specifications
  • Dimensions
  • Location of branch pipes
  • Options
  • Specification
  • Certificate
  • Сatalog
  • Description
  • Delivery and payment
Parameter Meaning Note
Max. volumetric flow (m³ / h) 27 * for water
Appointment brazed type heat exchanger is designed to transfer heat between different media - heat transfer agents. -
Working environment - can be used with other media
Working pressure / temperature S standard:
1 circuit - 35 bar / -196 ºC
2nd circuit - 27 bar / 225 ºC
M average:
1 circuit - 48 bar / - 196 ºC
2nd circuit - 36 bar / 225 ºC
H high:
1 circuit - 56 bar / -196 ºC
2nd circuit - 45 bar / 225 ºC
-
Max. working temperature (° С) - -
Min. working temperature (° С) -196 -
Scope of application - -
Max. number of plates (NP) 202 -

Габариты SWEP DB200

Hole size F1 / P1 33 mm
Hole size F2 / P2 33 mm
Hole size F3 / P3 33 mm
Hole size F4 / P4 33 mm
Hole size F5 / P5 42 mm
Hole size F6 / P6 42 mm

Патрубки SWEP E8LAS

Front plate: F1, F2, F3, F4


Back plate: P1, P2, P3, P4



The front plate of the SWEP PHE is marked with an arrow on the adhesive label or embossed on the lid. These markings are used to locate the front of the PHE and to locate the inner and outer contours / channels. With the arrow pointing up, the left side (ports F1, F3) is the inner loop (narrow for asymmetric devices) and the right side (ports F2, F4) is the outer loop (wide for asymmetric devices). Ports P1 / P2 / P3 / P4 are located on the rear side. Pay attention to their order.

Compact flange kit

Фланец SWEP AB120T

Compact counter flanges

Ответные фланцы SWEP AB120T

Soldering / welding connection

соединение для пайки, сварки SWEP AB120T

EPP insulation

ЕРР изоляция SWEP AB120T

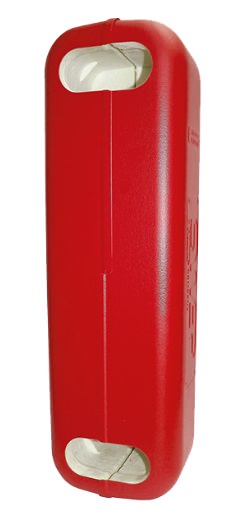

HVAC insulation

HVAC изоляция SWEP AB120T

PU 50 insulation

PU 50 изоляция SWEP AB120T

REF insulation

REF изоляция SWEP AB120T

Wall bracket

Настенный кронштейн SWEP AB120T

Сертификат официального дистрибьютора SWEP Intl AB

A brazed heat exchanger is a plate heat exchanger designed to transfer heat from the coolant to the heated medium. Heat transfer takes place between two corrugated plates, which are connected by soldering in a sealed body.
