| Model | BSV-2EN | |
| Application | Steam, air, cold and hot water, oil, other non-hazardous liquids | |
| Nominal size | 15A | |
| Max. pressure | 1.6 MPa** | |
| Max. Temperature | 350 °C** | |
| Material | Body | Ductile iron |
| Casing | Ductile iron | |
| Valve | Stainless steel | |
| Valve seat | Stainless steel | |
| Bellows | Stainless steel (SUS316Ti) | |
| Connection | EN 1092-2 PN16 | |
* - If you require 250A, please contact us.
** - According to PT rating.
Pressure and temperature rating

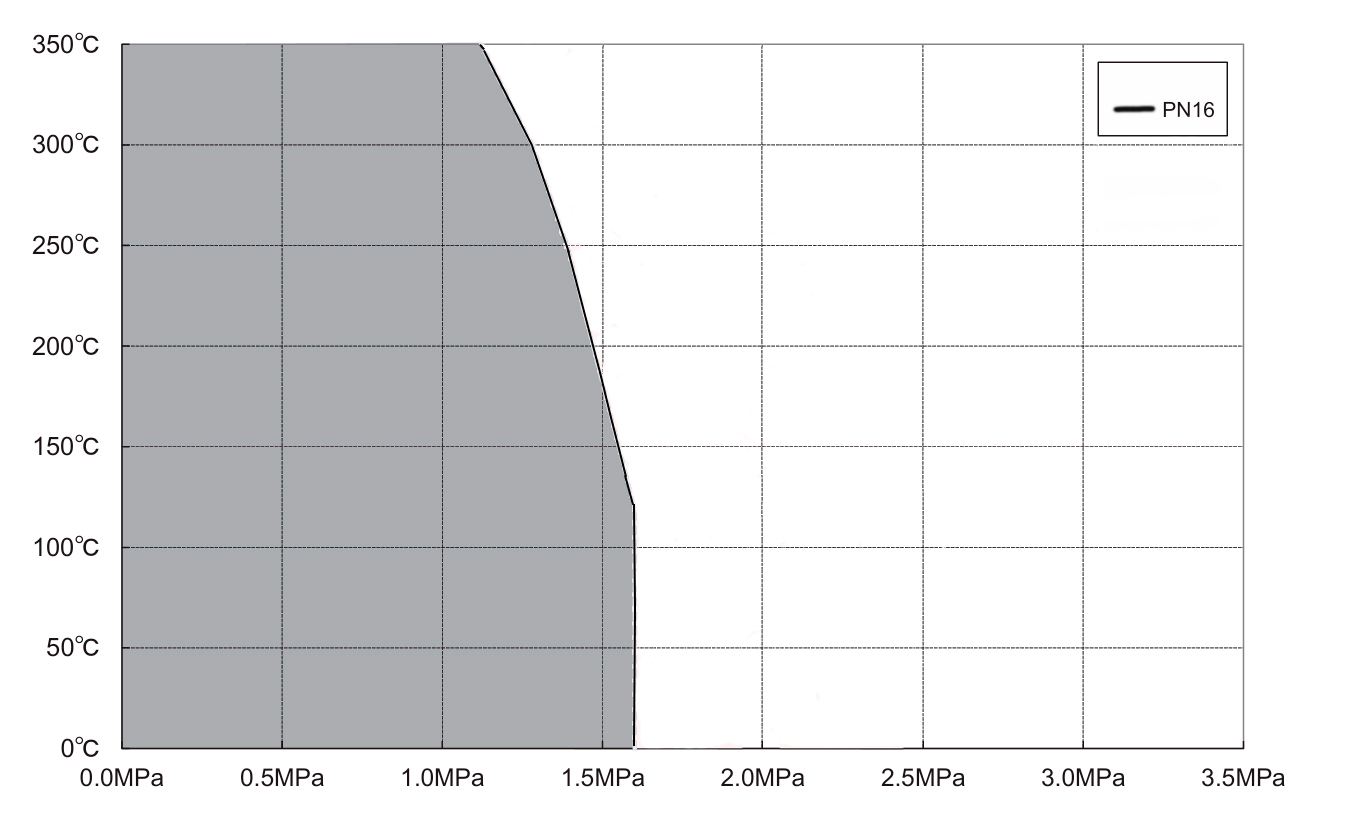

This diagram shows the permissible load values for PN16 ductile iron flanges according to EN 1092-2.
The BSV-2EN PN16 flange can be used in poorly lit areas.
If you need detailed maximum temperature and maximum fluid pressure values, Please refer to the following table:
| For EN 1092-2 | Temperature [°C] | ||||||
|---|---|---|---|---|---|---|---|
| Material | PN | -10 up to 120 | 150 | 200 | 250 | 300 | 350 |
| Ductile Iron | 16 | 1.60 MPa | 1.55 MPa | 1.47 MPa | 1.39 MPa | 1.28MPa | 1.12MPa |
Features
1. Non-rising handwheel: Prevents foreign objects from entering the handwheel, as most of the threaded surface is coated with a protective layer.
2. Leak-free thanks to two-stage sealing with a double bellows and gland packing.
3. The gland packing does not require retightening or applying pressure to the spindle, so the handwheel can be rotated at low torque without interference from the spindle.
4. Maintenance-free: no need to replace or retighten the gland packing.

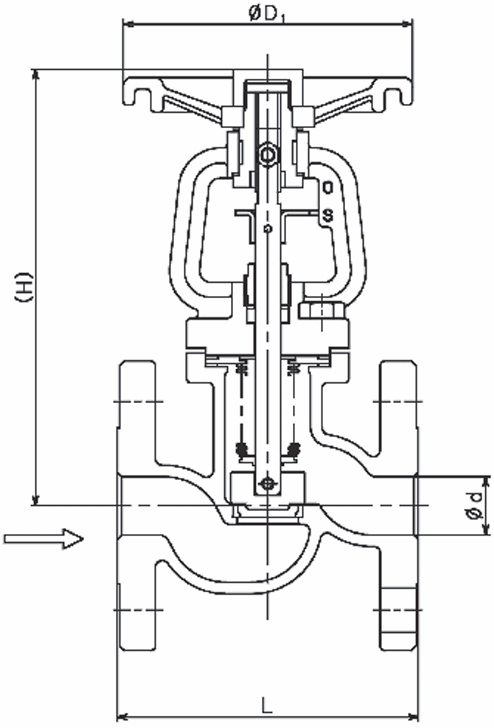

| Nominal size | L | N | Weight |
| 15A | 130 | 184 | 3.2 |
Center distance: EN 558-1 series 1.
