| Apply | Steam | |
| Inlet pressure | 0.1-1.0 MPa | |
| Reduced pressure | 0.02-0.15 MPa 0.1-0.85 MPa | |
| Max temperature | 183 °C | |
| Solenoid valve actuation | Normally closed | |
| Rated voltage | Available options: 100 VAC current, 50/60 Hz; 200 V a.c. current, 50/60 Hz | |
| Connection | Threaded JIS Rc Flanged JIS 10K FF | |
| Material | Main valve body | Ductile iron |
| Head. valve, valve seat | Stainless steel | |
| Membrane | Stainless steel | |
| Nominal size | Threaded connection: 15A-50A Flanged connection: 15A-100A | |
Contact us for other specifications.

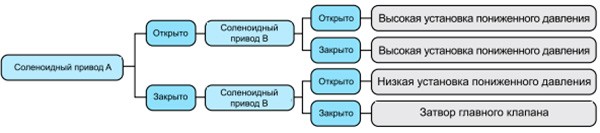

Reduced pressure switching with on/off control
Pilot operated diaphragm valve with high precision low pressure control. This option is optimal if pressure surges significantly affect quality.
