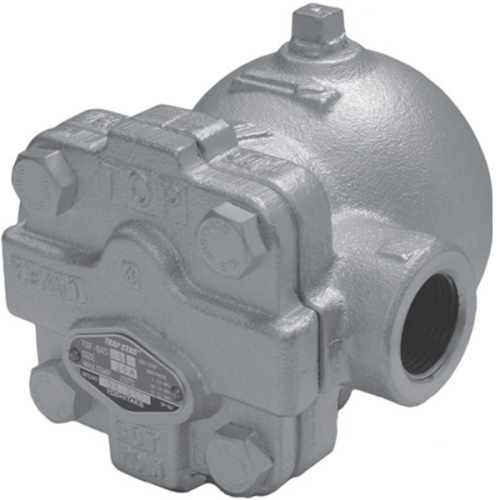

| Model | TSF-8AT | |
| Nominal Size | 15А, 20А, 25А | |
| Application | Steam Condensate | |
| Operating Pressure (Max. Operating Differential Pressure) | TSF-8-5: 0.01-0.5 MPa (0.5 MPa) TSF-8-10: 0.01-1.0 MPa (1.0 MPa) TSF-8-21: 0.01-2.1 MPa (2.1 MPa) | |
| Max. Temperature | 220 °C | |
| Material | Body | Malleable Cast Iron |
| Float | Stainless Steel | |
| Valve, Valve Seat | Stainless Steel | |
| Connection | JIS Rc, NPT thread | |
Installation Precautions.

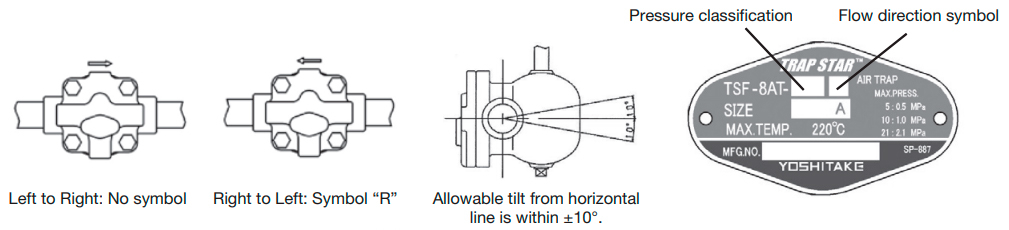

Flow Direction
The standard flow direction for the TSF-8AT is from left to right. However, a right-to-left flow direction is also possible. Please inform us of your preferred flow direction when placing an order.
In the case of right-to-left direction, the letter "R" is indicated at the end of the model code. Please do not disassemble the product on site. Due to the pressure equalizing tube connection, a top-to-bottom flow direction is not possible.
| Flow Direction | Symbol |
| Left to Right (default) | Blank |
| Right to Left | R |
1. TSF-8AT can effectively remove condensate without retention while operating reliably due to the difference in specific gravity between steam and condensate.
2. Since the main parts are mounted on the cover, you can remove the cover without removing the body itself from the pipeline. This makes inspection and replacement of parts easier.
3. Excellent corrosion resistance and durability due to the fact that all main parts are made of stainless steel.
4. The filter is installed to protect internal parts from foreign objects and improve durability.

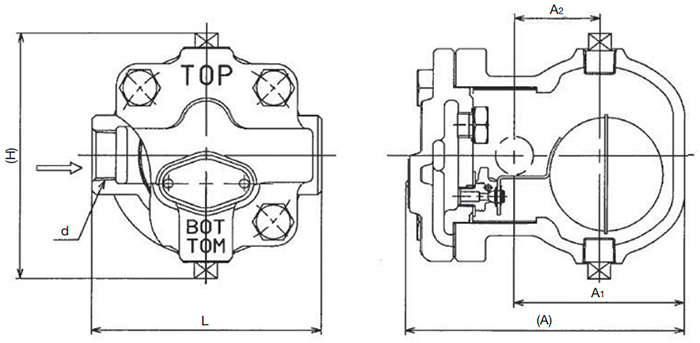

| Nominal size | d | L | A | A1 | H | Connection | Weight |
|---|---|---|---|---|---|---|---|
| 15A | Rc or NPT 1/2 | 121 | 147 | 90 | 145 | Rc or NPT 3/8 | 3.7 |
| 20A | Rc or NPT 1/2 | 121 | 147 | 90 | 145 | Rc or NPT 3/8 | 3.7 |
| 25A | Rc or NPT 1/2 | 145 | 147 | 90 | 145 | Rc or NPT 3/8 | 4.1 |

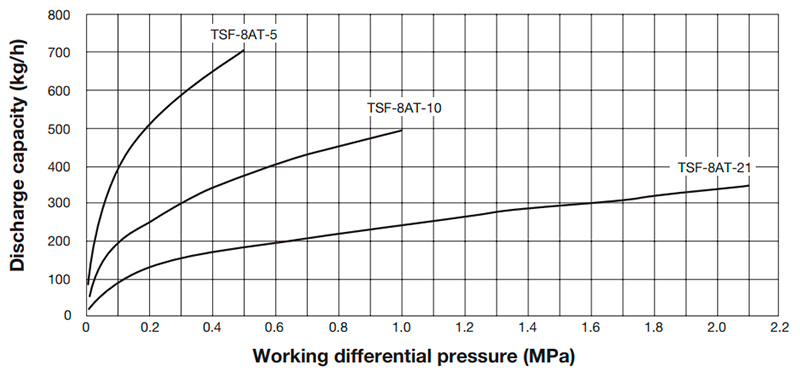

Maximum continuous performance
The discharge capacity shown on the above chart is the maximum value.
In designing a system, select a steam trap with a sufficient safety factor (more than two times the regular level).
