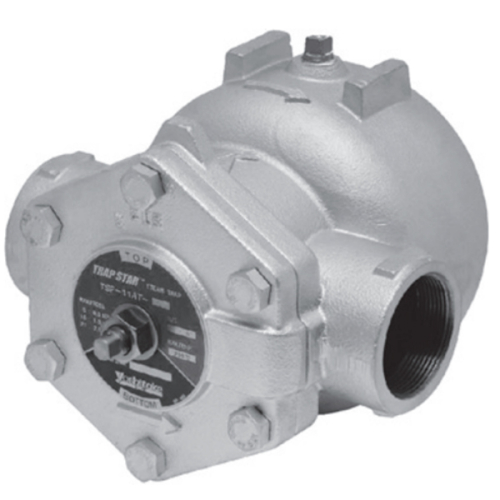

| Model | TSF-11AT | |
| Nominal size | 32A-50A | |
| Application | Steam condensate | |
| Working pressure (Max. operating differential pressure) | TSF-10AT-5: 0.01-0.5 MPa TSF-10AT-10: 0.01-1.0 MPa TSF-10AT-21: 0.01-2.1 MPa | |
| Max. temperature | 220 °C | |
| Material | Case | Ductile iron |
| Float | Stainless steel | |
| Valve, valve seat | Stainless steel | |
| Connection | Threaded JIS Rc Threaded NPT | |
Precautions during installation

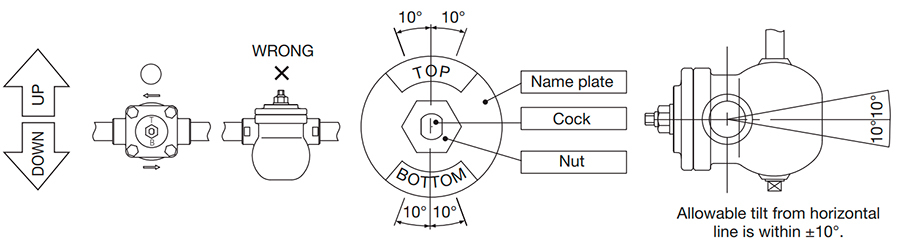

After installation, adjust the direction of the nameplate under non-pressure conditions.
The flow direction of the TSF-11AT is adjustable from left to right. When used from right to left, you can customize
direction by turning the tap.
After adjusting the direction, remove the cap on the top side and connect the pressure equalization tube.
Due to the connection of the pressure equalization pipe, the flow direction from top to bottom is not possible.
1. Model TSF-11 can effectively remove condensate without retention, ensuring steam system energy saving without steam loss and preventing equipment piping from being subject to corrosion.
2. The flow direction can be easily switched without disassembly by removing the cover.
3. Since the main parts are mounted on the cover, you can remove the cover without removing the body itself from the pipeline. This makes it easier to inspect and replace parts.

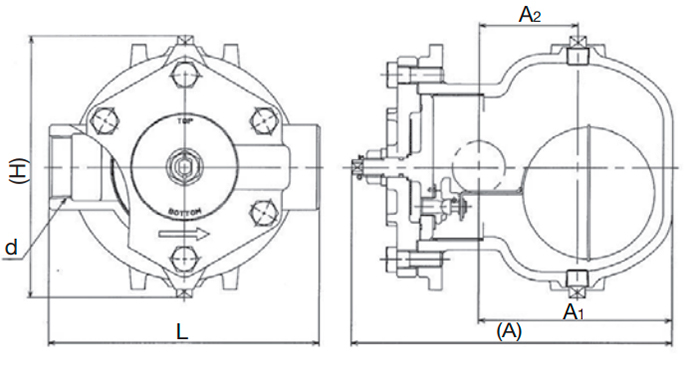

TSF-11AT
| Nominal size | d | L | A | A1 | A2 | H | Plug | Weight |
| 32A | Rc or NPT 1/4 | 190 | 244 | 147 | 75 | 210 | Rc or NPT 3/8 | 10.0 |
| 40A | Rc or NPT 1 1/4 | 205 | 244 | 147 | 75 | 210 | Rc or NPT 3/8 | 10.2 |
| 50A | Rc or NPT 2 | 220 | 244 | 147 | 75 | 210 | Rc or NPT 3/8 | 10.5 |

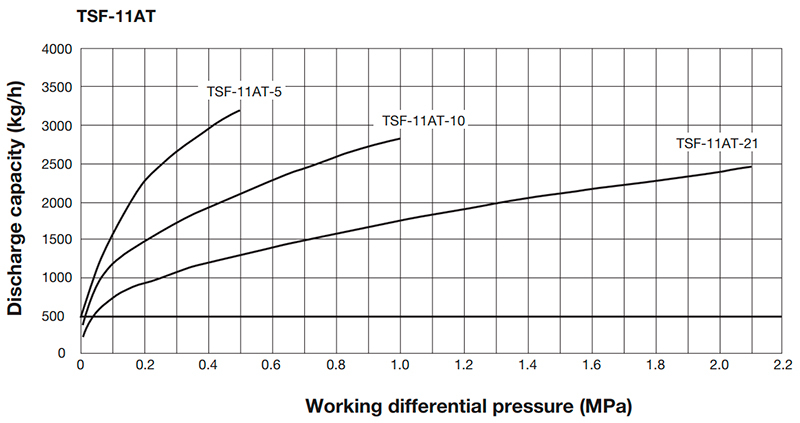

Maximum continuous performance of TSF-11AT
The throughput shown in the graph above is the maximum value. When designing your system, select a steam trap with sufficient safety margin (more than twice the normal level).
